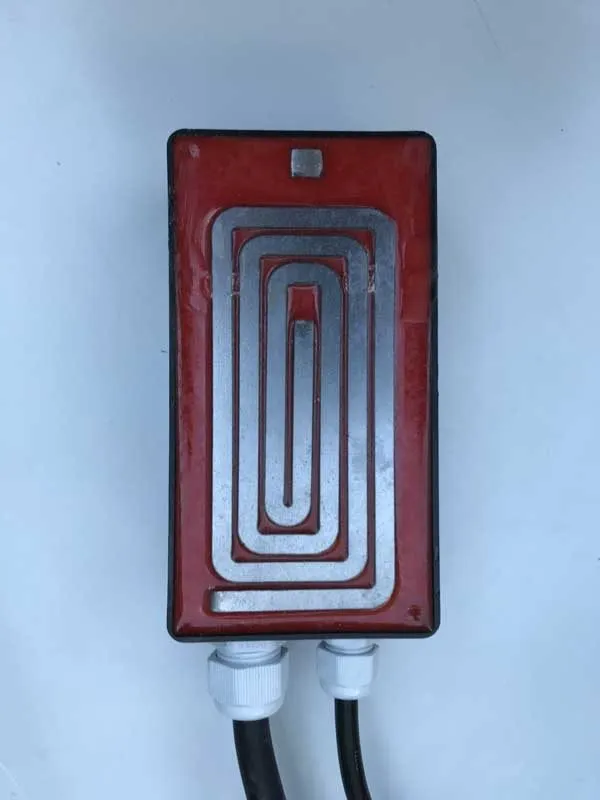

ER probe (TE-ERC)
APPLICATION
- ◆ER probe (TE-ERC) is installed along the structure for measuring the corrosion parameters. It is connected with remote monitoring test points TE-RMU or CP stations TE-RCU/SCR.
MEASURING PARAMETERS
- ◆TE-ERC enables measuring the following parameters:
- ◆Intensity of DC current across a coupon /soil surface – Idc
- ◆Intensity of AC current across a coupon/soil surface - Iac
- ◆Value of the alternate voltage v.s. earth - Uac
- ◆Corrosion rate - Vcorr
- ◆Density of DC current across a coupon /soil surface - Jdc
- ◆Density of AC current across a coupon/soil surface - Jac
TECHNICAL CHARACTERISTICS
- ◆Range: Idc(0-20A), Iac (0-5A), Uac (0-50V), Vcorr(0-20000μm/god), Jdc (0-10000A/m2), Jac (0-10000A/m2)
- ◆Connections: TE-RMU, TE-RCU
